Enjoy the safety and convenience of a Magnum lift. The Magnum lift represents the culmination of years of experience in the boat lift industry and the desire to build a better boat lift.

Click Here For a FREE Estimate!

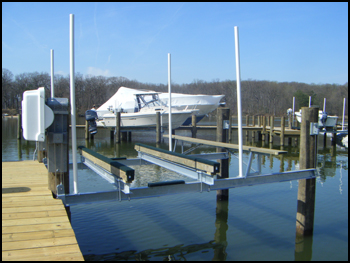

HD Model Specifications:

Capacity8,000 lbs., 10,000 lbs., 12,500 lbs., 15,000 lbs., 20,000 lbs.
Cradle Travel9′ standard, opt. to 13′
Req. Power*110 volt / 30 amp – 220* volt / 15 amp*
Piling Diameter8″ minimum
Piling Height18″ above the deck
Piling SpacingSee Support page
* For capacities 15,000 lbs. and less

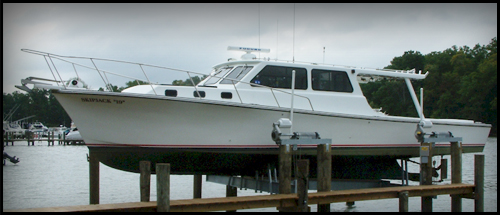

25K, 30K and 40K ‘HD’ Model Specifications:

Capacity25,000 / 30,000 / 40,000 lbs.
Cradle Travel15′ standard
Required Power220 volt / 40 amp
PilingSize RequirementsEight 12″ diameter
Piling Height Above Deck4′ above the deck
Distance Between Piling WidthSee Support page

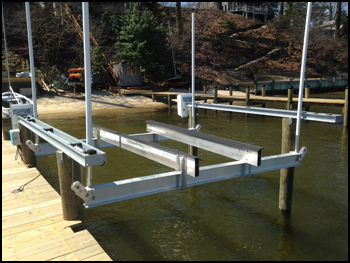

Hybrid Standard Specifications:

Pile spacing on center width13′
Pile space length on center12′
Up and down travel15′
Power Requirements110V 30A / 220V 15A

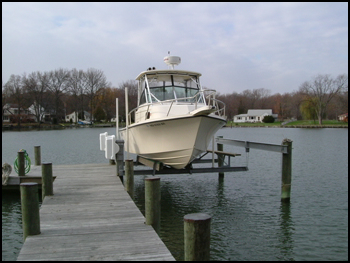

S Model Specifications

Capacity8,000 lbs., 10,000 lbs.
Cradle Travel9′ standard, opt. to 13′
Required Power110 volt. 30 amp – 220 volt/ 15 amp
Piling Diameter8″ minimum
Piling Height18″ above the deck
Piling SpacingSee Support page

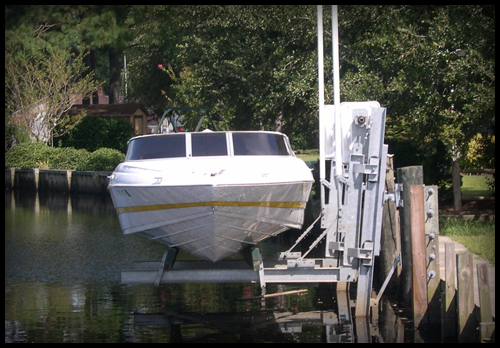

Side Mount Specifications:

Capacities6,000 lbs., 8,000 lbs., 10,000 lbs.
Arm Length8′
Track Lengths14′, 16′, 18′, 20′
Required Power110 volt, 30 amp or 220 Volt, 15 amp
